From: John Gallagher <gldrgidr@...>
Date: Sunday, October 3, 2010 4:45 PM
Subject: Re: [BugHLG] GWS Receiver Wireing Diagram

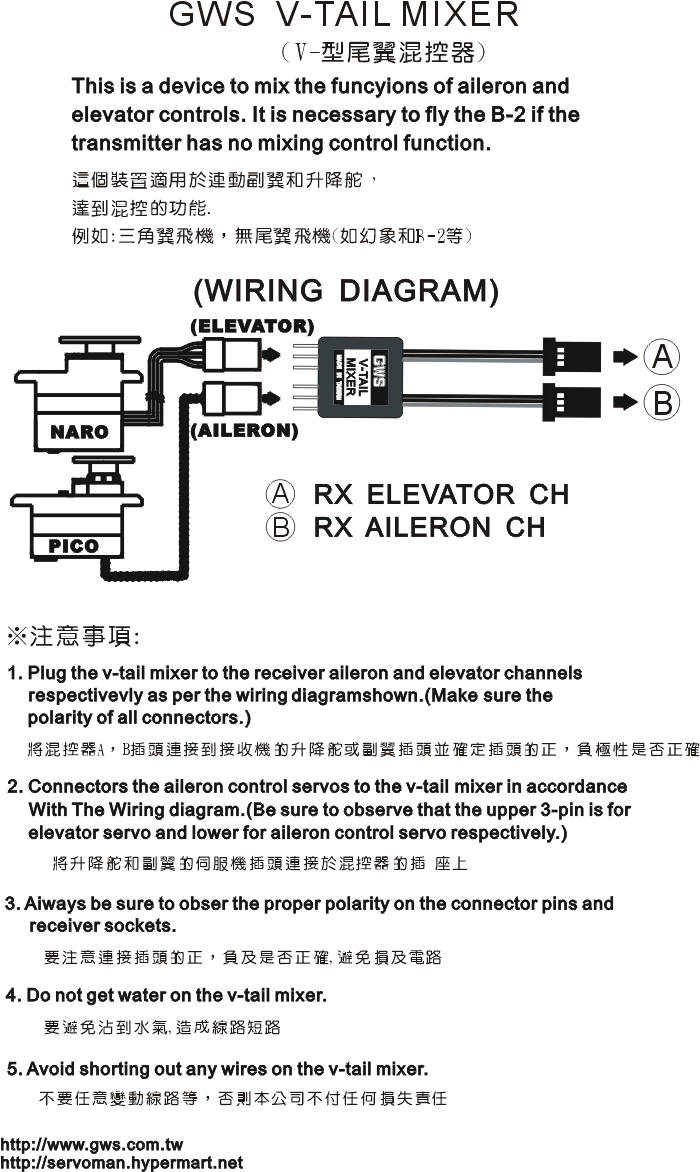

As long as your transmitter can handle v-tail mixing, why not just dump the y-adapter. Even most simple single stick transmitters have a button for v-tail mixing. John ________________________________ From: Tim Schuh <tim@...> To: BugHLG@yahoogroups.com Sent: Sun, October 3, 2010 4:32:57 PM Subject: Re: [BugHLG] GWS Receiver Wireing Diagram On 9/23/2010 6:06 PM, otoole1939 wrote: > Hello everyone interested in the BUG HLG. > I built three Bugs several years ago. Then I retired and moved several times. I >"found" my three Bugs in the attic a couple of weeks ago and decided to take up >flying again. I have a GWS R4PF receivers installed in one with a Y-adapter for >the V-tail movement. My problem is: I lost the wireing diagram. Does anyone have >a wireing diagram for this receiver and a v tail? > Thanks > Terry > Not being familiar with that receiver I'm not sure how that will work without a mixer. The closest I can find is the single page manual for the mixer. I can't find any reference for the R4PF Rx. http://www.gwsus.com/images/note%20book/v-tail2.jpg [Non-text portions of this message have been removed]
